Cisco Catalyst 9300 Series Will Replace the Catalyst 3850 Series

July 26 2017 , Written by Cisco & Cisco Router, Network Switch Published on #Networking, #Cisco Switches - Cisco Firewall, #Cisco Technology - IT News, #IT, #Cisco Switches-Software, #Technology

Is Your Network Ready for the New Era? Cisco announced its new Catalyst series switches-the Catalyst 9000 Series, introducing an entirely new era of networking. The Network. Intuitive.

There are three series in the new Catalyst 9000 switch family:

1. Catalyst 9300 Series (LAN Access Switches): the top fixed-access enterprise network switch series, stacking to 480 Gbps.

2. Catalyst 9400 Series (LAN Access Switches): the leading modular-access switches for enterprise, the Catalyst 9400 Series supports up to 9 Tbps.

3. Catalyst 9500 Series (LAN Core and Distribution Switches): the industry’s first fixed-core 40-Gbps switch for the enterprise.

Learn more: The New Catalyst 9000 Switches Simplify IoT & Cloud Requirements

In this article we will talk about the new Catalyst 9300 Series, the Next Level of the Market-Leading Fixed Access Switching Platform.

Will the Catalyst 9300 replace the Catalyst 3850 Series? Definitely, it is the best replacement for the Catalyst 3850 Series. Why? Let’s check the more detailed features of the Cisco Catalyst 9300 Series.

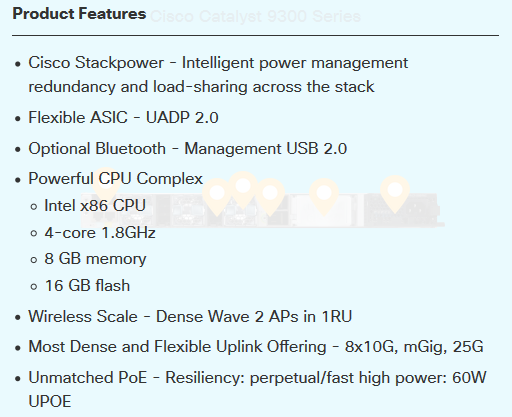

Switch models and configurations

The Cisco Catalyst 9300 Series is made up of seven different switch models. Any of the models can be used together in a stack of up to eight units.

The Table below lists port scale and power details for the Cisco Catalyst 9300 Series models.

Cisco Catalyst 9300 Series Switch configurations

Model

Total 10/100/1000 or Multigigabit Copper Ports

Default AC Power Supply

Available PoE Power

Cisco StackWise-480

Cisco StackPower

C9300-24T

24

350WAC



Yes

Yes

C9300-48T

48

350WAX

C9300-24P

24 POE+

715WAC

445W

C9300-48P

48 POE+

715WAC

437W

C9300-24U

24 Cisco UPOE

1100WAC

830W

C9300-48U

48 Cisco UPOE

1100WAC

822W

C9300-24UX*

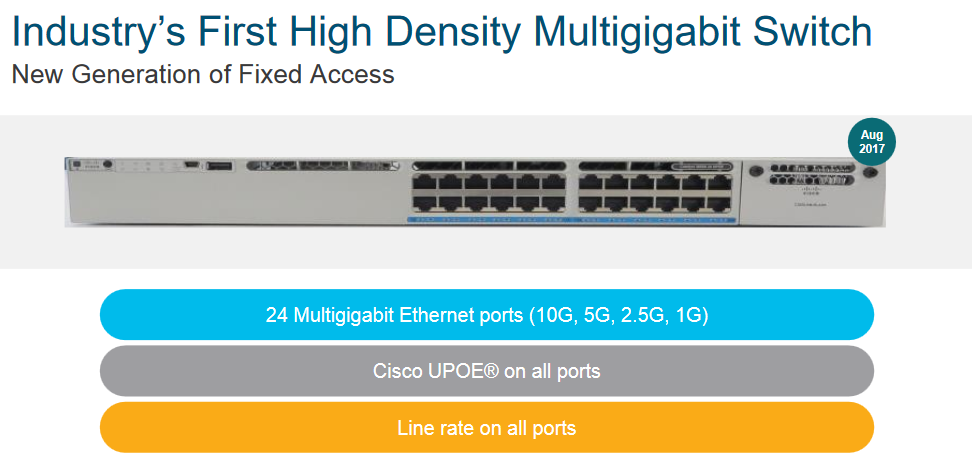

24 Multigigabit Cisco UPOE (100 Mbps or 1, 2.5, 5, or 10 Gbps)

1100WAC

490W



Network modules

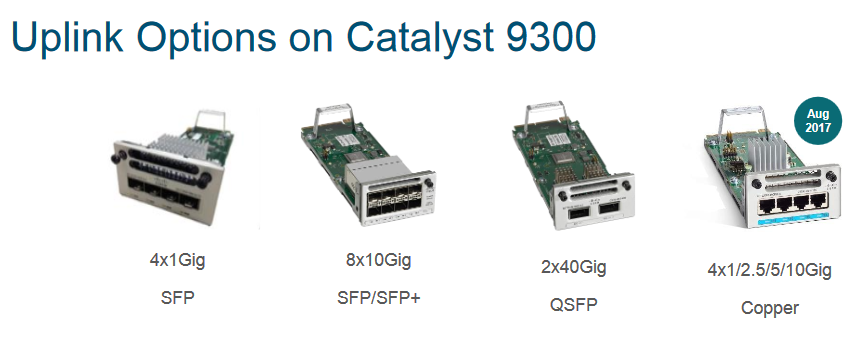

The Cisco Catalyst 9300 Series Switches support optional network modules for uplink ports. The default switch configuration does not include the network module. When you purchase the switch, you can choose from the network modules described in the following Table.

  • Uplink modules supported on all 9300 Series copper models
  • Online Insertion and Removal (OIR) supported on all uplink modules

Network module numbers and descriptions

Network Module

Description

C9300-NM-4G

9300 Series 4x 1G Network Module

C9300-NM-8X

9300 Series 8x 10G Network Module

C9300-NM-2Q

9300 Series 2x 40G Network Module

C9300-NM-4M

9300 Series 4x Multigigabit Network Module

Please note: Existing 3850 network modules are also supported in the Catalyst 9300 Series platforms.



Power Supplies

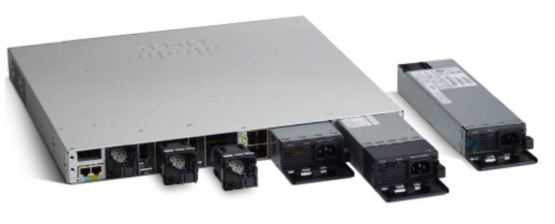

The Cisco Catalyst 9300 Series Switches support dual redundant power supplies. The switches ship with one power supply by default, and the second power supply can be purchased when the switch is ordered or at a later time. If only one power supply is installed, it should always be in power supply bay #1. The switches also ship with three field-replaceable fans.

Table3 lists the different power supplies available in these switches and available PoE power.

Table3. Power supply models

Models

Default Power Supply

Available PoE Power

24-port data switch

PWR-C1-350WAC

48-port data switch

24-port PoE+ switch

PWR-C1-715WAC

445W

437W

48-port PoE+ switch

24-port Cisco UPOE switch

PWR-C1-1100WAC

830W

822W

48-port Cisco UPOE switch

24-port Multigigabit Cisco UPOE switch

PWR-C1-1100WAC

490W – Support in Open IOS-XE 16.6

Power supply requirements for PoE and PoE+



24-Port PoE Switch

48-Port PoE Switch

PoE on all ports (15.4W per port)

1 PWR-C1-715WAC

1 PWR-C1-1100WAC or 2 PWR-C1-715WAC

PoE+ on all ports (30W per port)

1 PWR-C1-1100WAC or 2 PWR-C1-715WAC

2 PWR-C1-1100WAC or 1 PWR-C1-1100WAC and 1 PWR-C1-715WAC

Power supply requirements for Cisco UPOE



24-Port UPOE Switch

48-Port UPOE Switch

24-Port Multigigabit UPOE Switch

Cisco UPOE (60W per port) on all ports (24-port switch) or up to 30 ports (48-port switch)

1 PWR-C1-1100WAC and 1 PWR-C1-715WAC

2 PWR-C1-1100WAC

2 PWR-C1-1100WAC

●   Perpetual PoE: With Perpetual PoE, the PoE power is maintained during a switch reload. This is important for IoT endpoints such as PoE-powered lights, so that there is no disruption during switch reboot.

●   Fast PoE: When power is restored to a switch, PoE starts delivering power to endpoints without waiting for the operating system to fully load, thereby speeding up the time for the endpoint to start up.

Software requirements

Cisco Catalyst 9300 Series Switches run on Open IOS XE 16.5.1a release or later. This software release includes all the features listed earlier in the Platform Benefits section.

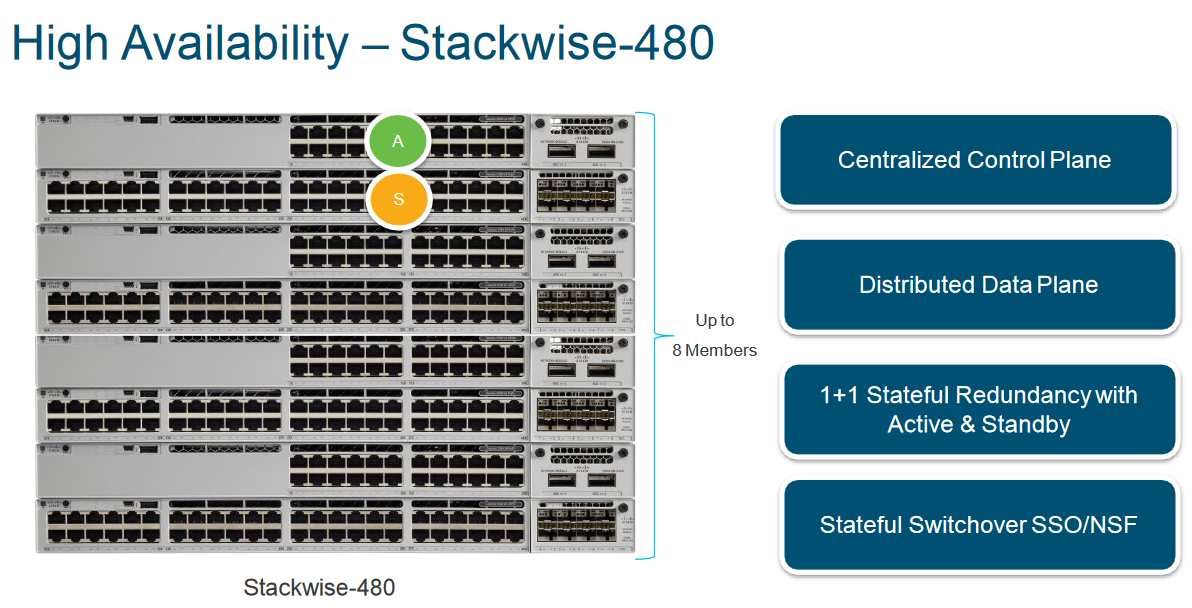

  • Up to 8 Switches can be stacked together using back stacking cables
  • All 9300 models are supported in the stack
  • All the switches in the stack should run the same IOS and License
  • Mixed stacking between 9300 and 9300 is not supported



Cisco Catalyst 9300 Series StackPower

“Zero-Footprint” RPS Deployment

• Provides RPS functionality with Zero RPS Footprint

• Pay-as-you-grow architecture–similar to the Data Stack

• 1+N Redundancy with Inline Power

• Up to 4 Switches in a StackPower Ring

• Multiple StackPower Possible within one Data Stack

• Up to 9 Switches in a star topology with XPS



Mapping Between Cisco Catalyst 3850 and 9300

3850 PIDs

9300 PID

Short description

WS-C3850-24T

C9300-24T

Catalyst 9300 24-port data only switch

WS-C3850-24P

C9300-24P

Catalyst 9300 24-port PoE+ switch

WS-C3850-24U

C9300-24U

Catalyst 9300 24-port UPOE switch

WS-C3850-24XU

C9300-24UX

Catalyst 9300 24-port mGig and UPOE switch

WS-C3850-48T

C9300-48T

Catalyst 9300 48-port data only switch

WS-C3850-48P

C9300-48P

Catalyst 9300 48-port PoE+ switch

WS-C3850-48U

C9300-48U

Catalyst 9300 48-port UPOE switch

Learn More: Why Migrate to Cisco Catalyst 9300 Switches?

More Related…

Why Migrate to the Cisco Catalyst 9400 Series Switches?

Why Migrate to Cisco Catalyst 9500 Switches?

Q and A: Cisco Catalyst 9400 Overview

The New Catalyst 9000 Switches Simplify IoT & Cloud Requirements
