Cisco Catalyst 2960-S Series Switches OVERVIEW

June 24 2013 , Written by Cisco & Cisco Router, Network Switch Published on #Cisco Switches - Cisco Firewall

The CiscoCatalyst 2960-S Series Switches are fixed-configuration Gigabit Ethernet switches that provide enterprise-class Layer 2 switching for campus and branch access applications. They enable reliable and secure business operations with lower total cost of ownership through a range of innovative features including FlexStack, Power over Ethernet Plus (PoE+), and Cisco Catalyst Smart Operations.

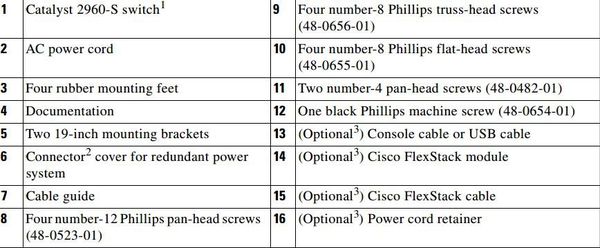

Firstly, let’s check the contents of Cisco 2960-S while purchasing one.



Catalyst 2960S-48FPD-L switch shown for example. Your switch model might look different.

2. Only available on some models.

3. Item is orderable.

Highlights

Cisco Catalyst 2960-S switches feature:

• 24 or 48 Gigabit Ethernet ports

• 1G Small Form-Factor Pluggable (SFP) or 1G/10G SFP+ slots

• Cisco FlexStack stacking with 20 Gbps of stack throughput (optional)

• IEEE 802.3at-compliant PoE+ for up to 30W of power per port

• Up to 740W of combined PoE/PoE+ budget

• USB interfaces for management and file transfers

• LAN Base or LAN Lite Cisco IOS Software feature set

• SmartOperations tools that simplify deployment and reduce the cost of network administration

• An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement

Applications and Benefits

The Cisco Catalyst 2960-S Series is ideal for:

• Deploying cost-effective wired connectivity in traditional desktop workspace environments

•Implementing quality of service (QoS) to provide priority treatment of voice and critical business applications

• Enforcing basic security policies to limit access to the network and mitigate threats

• Reducing total cost of ownership through simplified operations and automation

More…Cisco Catalyst 2960-S Series Switches with LAN Base Software

The Cisco Catalyst 2960S Switch with LAN Base software is a fixed-configuration, Layer 2 Ethernet switch that supports enhanced switching services, IP communications, and wireless networking for small and medium-sized businesses. These switches provide the performance, availability, and manageability that modern office environments demand, as well as the intelligence to support state-of-the-art business applications and security services.

What's new for the Cisco Catalyst 2960-S Series Switches with LAN Base Software:

• 10 and 1 Gigabit Ethernet uplink flexibility with Small Form-Factor Pluggable Plus (SFP+), providing business continuity and fast transition to 10 Gigabit Ethernet

• 24 or 48 ports of Gigabit Ethernet desktop connectivity

• Cisco FlexStack stacking module with 20 Gbps of throughput, allowing ease of operation with single configuration and simplified switch upgrade

• PoE+ with up to 30W per port that allows you to support the latest PoE+ capable devices

• Power supply options, with 740W or 370W fixed power supplies for PoE+ switches are available

• USB storage for file backup, distribution, and simplified operations

• A wide range of software features to provide ease of operation, highly secure business operations, sustainability, and a borderless network experience

• Limited lifetime hardware warranty, including next-business-day replacement with 90-day service and support

The Cisco Catalyst 2960 Series Switches with LAN Base Software offer the following:

• Dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or fiber uplink; each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, with one port active at a time

• 24 or 48 ports of Fast Ethernet desktop connectivity

• PoE configurations with up to 15.4W per port

• A wide range of software features to provide ease of operation, highly secure business operations, sustainability, and a borderless networking experience

• Limited lifetime hardware warranty

Configurations of Cisco Catalyst 2960-S Series Switches with LAN Base Software

Cisco Catalyst 2960-S Switch Model

Description

Uplinks

Available PoE Power

10 Gigabit Uplinks with 10/100/1000 Ethernet Connectivity

Cisco Catalyst 2960S-48FPD-L

48 Ethernet 10/100/1000 PoE+ ports

2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP ports

740W

Cisco Catalyst 2960S-48LPD-L

48 Ethernet 10/100/1000 PoE+ ports

2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP ports

370W

Cisco Catalyst 2960S-24PD-L

24 Ethernet 10/100/1000 PoE+ ports

2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP ports

370W

Cisco Catalyst 2960S-48TD-L

48 Ethernet 10/100/1000 ports

2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP ports

-

Cisco Catalyst 2960S-24TD-L

24 Ethernet 10/100/1000 ports

2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP ports

-

1 Gigabit Uplinks with 10/100/100 Ethernet Connectivity

Cisco Catalyst 2960S-48FPS-L

48 Ethernet 10/100/1000 PoE+ ports

4 One Gigabit Ethernet SFP ports

740W

Cisco Catalyst 2960S-48LPS-L

48 Ethernet 10/100/1000 PoE+ ports

4 One Gigabit Ethernet SFP ports

370W

Cisco Catalyst 2960S-24PS-L

24 Ethernet 10/100/1000 PoE+ ports

4 One Gigabit Ethernet SFP ports

370W

Cisco Catalyst 2960S-48TS-L

48 Ethernet 10/100/1000 ports

4 One Gigabit Ethernet SFP ports

-

Cisco Catalyst 2960S-24TS-L

24 Ethernet 10/100/1000 ports

4 One Gigabit Ethernet SFP ports

-

Cisco Catalyst 2960S-STACK

Hot-swappable FlexStack stacking module

-

-

All models available with optional Cisco FlexStack stacking module.

No DC power supplies are available.

Configurations of Cisco Catalyst 2960 Series Switches with LAN Base Software

Cisco Catalyst 2960 Switch Model

Description

Uplinks

Available PoE Power

1 Gigabit Uplinks with 10/100 Ethernet Connectivity

Cisco Catalyst 2960-48PST-L

48 Ethernet 10/100 PoE ports

2 One Gigabit Ethernet SFP ports and 2 fixed Ethernet 10/100/1000 ports

370W

Cisco Catalyst 2960-24PC-L

24 Ethernet 10/100 PoE ports

2 dual-purpose ports (10/100/1000 or SFP)

370W

Cisco Catalyst 2960-24LT-L

24 Ethernet 10/100 ports

2 Ethernet 10/100/1000 ports

123W

Cisco Catalyst 2960-24TC-L

24 Ethernet 10/100 ports

2 dual-purpose ports

-

Cisco Catalyst 2960-48TC-L

48 Ethernet 10/100 ports

2 dual-purpose ports (10/100/1000 or SFP)

-

Cisco Catalyst 2960-24TT-L

24 Ethernet 10/100 ports

2 Ethernet 10/100/1000 ports

-

Cisco Catalyst 2960-48TT-L

48 Ethernet 10/100 ports

2 Ethernet 10/100/1000 ports

-

1 Gigabit Uplinks with 10/100/1000 Ethernet Connectivity

Cisco Catalyst 2960G-24TC-L

24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose (10/100/1000 or SFP)

4 dual-purpose ports (10/100/1000 or SFP)



Cisco Catalyst 2960G-48TC-L

48 Ethernet 10/100/1000 ports, 4 of which are dual-purpose (10/100/1000 or SFP)

4 dual-purpose ports (10/100/1000 or SFP)



Compact Switches

Cisco Catalyst 2960-8TC-L

8 Ethernet 10/100 ports; compact size with no fan

1 dual-purpose port (10/100/1000 or SFP)



Cisco Catalyst 2960PD-8TT-L

8 Ethernet 10/100 ports; compact size with no fan

1 10/100/1000 PoE input port



Cisco Catalyst 2960G-8TC-L

7 Ethernet 10/100/1000 ports; compact size with no fan

1 dual-purpose port (10/100/1000 or SFP)



Switch PoE and PoE+ Power Capacity

Switch Model

Maximum Number of PoE+ (IEEE 802.3at) Ports*

Maximum Number of PoE (IEEE 802.3af) Ports*

Available PoE Power

10 Gigabit Uplinks with 10/100/1000 Ethernet Connectivity

Cisco Catalyst 2960S-48FPD-L

24 ports up to 30W

48 ports up to 15.4W

740W

Cisco Catalyst 2960S-48LPD-L

12 ports up to 30W

24 ports up to 15.4W48 ports up to 7.7W

370W

Cisco Catalyst 2960S-24PD-L

12 ports up to 30W

24 ports up to 15.4W

370W

1 Gigabit Uplinks with 10/100/1000 Ethernet Connectivity

Cisco Catalyst 2960S-48FPS-L

24 ports up to 30W

48 ports up to 15.4W

740W

Cisco Catalyst 2960S-48LPS-L

12 ports up to 30W

24 ports up to 15.4W

48 ports up to 7.7W

370W

Cisco Catalyst 2960S-24PS-L

12 ports up to 30W

24 ports up to 15.4W

370W

Cisco Catalyst 2960-48PST-L

N/A

24 ports up to 15.4W

370W

Cisco Catalyst 2960-24PC-L

N/A

24 ports up to 15.4W

370W

Cisco Catalyst 2960-24LT-L

N/A

8 ports up to 15.4W

123W

* Intelligent power management allows flexible power allocation across all ports.

Why Buy Cisco Switches?

  • Flexibility: Variety of port and speed combinations including PoE.
  • Secure and Reliable: All the rock-solid performance you’d expect from Cisco.
  • Expandability: Cisco switches are designed to expand as your business grows.

More Cisco 2960-S Info you can visit:

http://www.cisco.com/en/US/prod/collateral/switches/ps5718/ps6406/product_data_sheet0900aecd80322c0c.html

More Related Cisco 2960 Guides and Tips:

How to Configure the Voice VLAN Feature on the Catalyst 2960 and 2960-S Switches?

Upgrade a Cisco 2960 IOS with a Console Cable

Cisco Catalyst 2960 Series Enables Routing

More Popular Topics Related to Cisco Catalyst 2960-S FlexStack

Cisco Catalyst 2960 LAN Base Series & Catalyst 2960 LAN Lite Series

Cisco Catalyst Switch: How to Create and Delete VLAN on It?

Cisco Catalyst Access Switching
